Fixing Clamps and Accessories

Steel fixing
Clamps for steel grating	For mesh

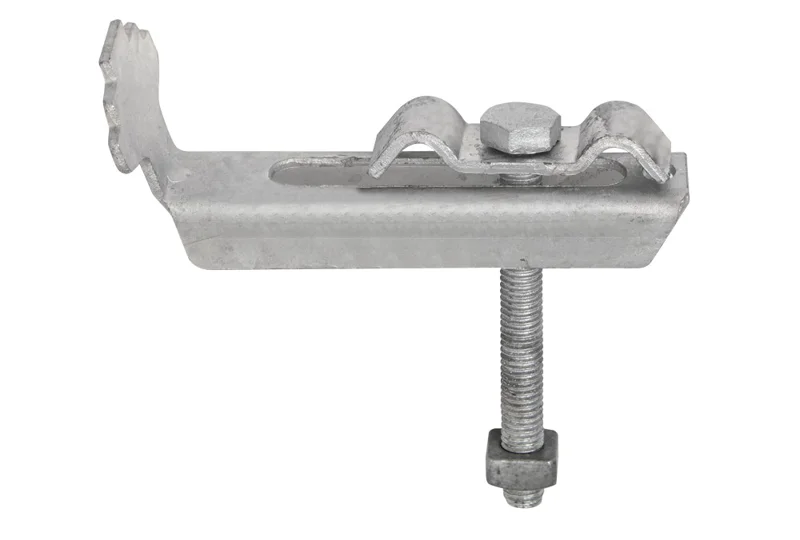

Galvanized standard clamp with upper clip	19 x 19
	30 x 10
	30 x 19
	30 x 30
	40 x 19

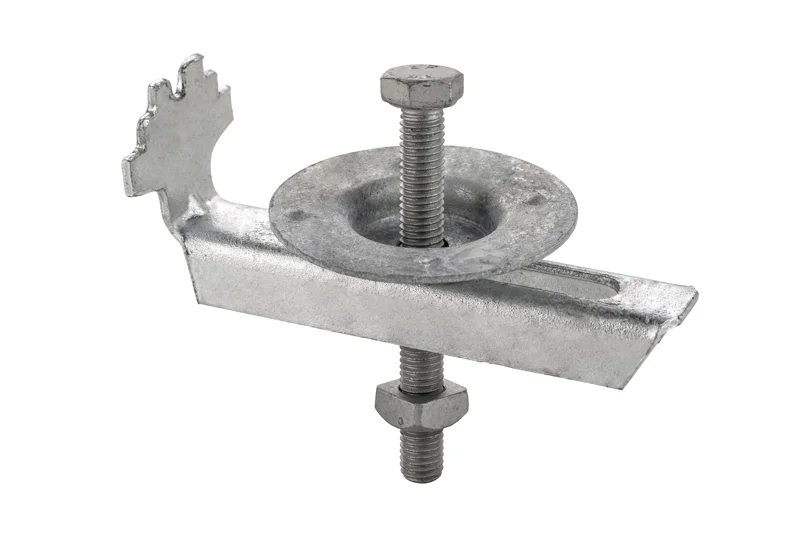

Galvanized standard clamp with washer	30 x 30

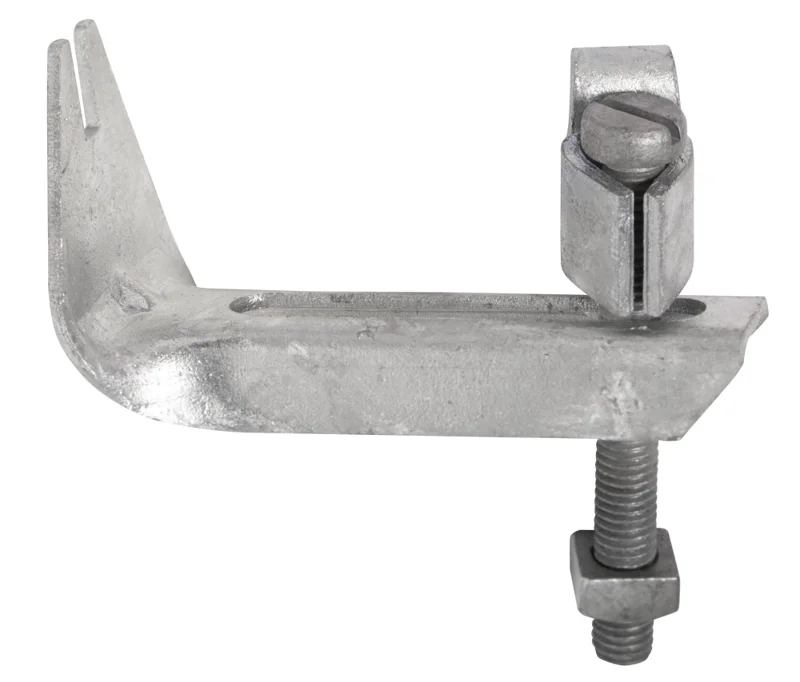

Universal galvanized clamp	30 x 30 minimum
Galvanized double clamp with upper clip	19 x 19
Galvanized double clamp with upper clip	30 x 30
Galvanized upper clip	19 x 19
	30 x 10
	30 x 19
	30 x 30
	40 x 19
	40 x 40
Universal galvanized hook	30 x 30 minimum
Stainless steel standard clamp with upper clip	19 x 19

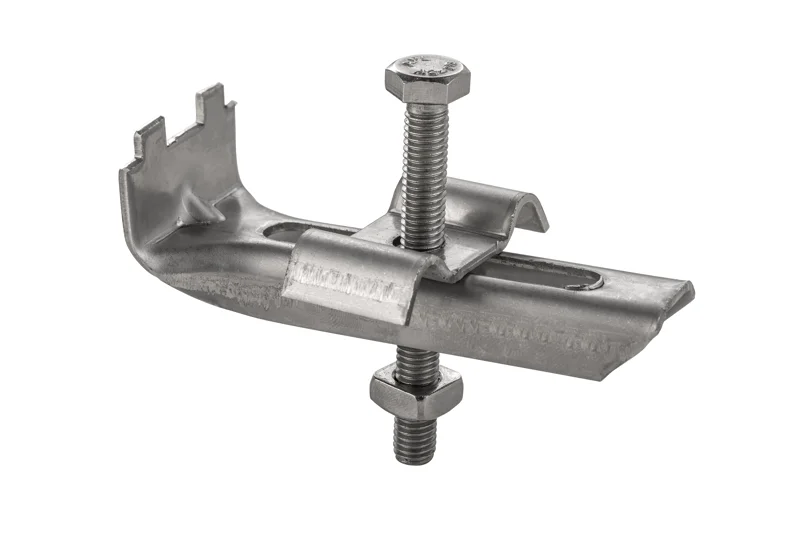

Stainless steel standard clamp with upper clip	30 x 30

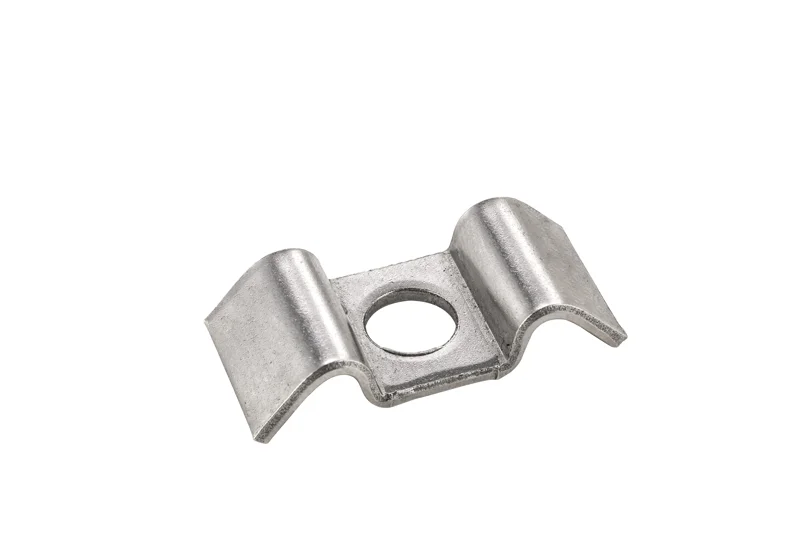

Stainless steel upper clip	19 x 19
Stainless steel upper clip	30 x 30


Adjustable feet	Insert thickness (mm)	Insert dimensions (mm)	Foot height (mm)
For steel grating (mesh 19 x 19)	20	25 x 25	40 or 70


Fixing clamps for profile grating
Type S clip without olive for PS OFF - PS PERF profile grating
Type S clip without olive for PS PMR profile grating
Polyester olive for PS-CRANT profile grating

Polyester fixing
Clamps for polyester grating	For mesh
Complete galvanized clamp with upper clip	38 x 38
Complete galvanized clamp with upper clip	19 x 19
Complete stainless steel clamp with upper clip	38 x 38

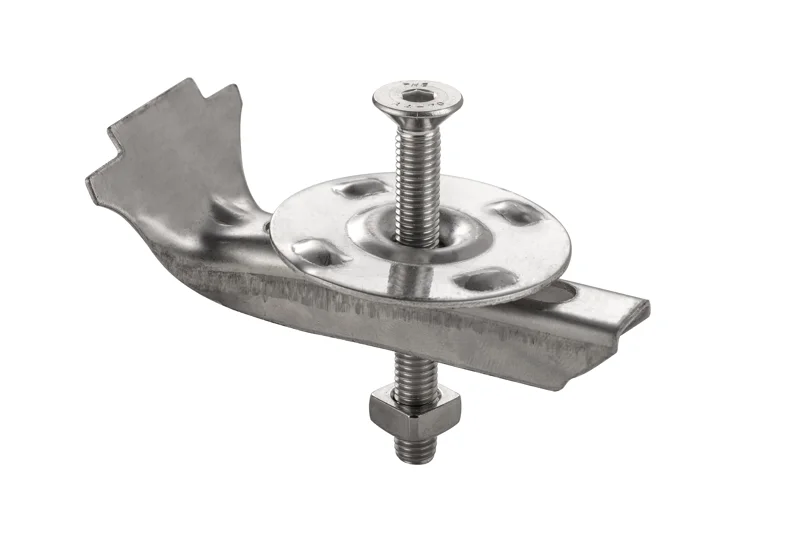

Complete stainless steel clamp with washer	19 x 19

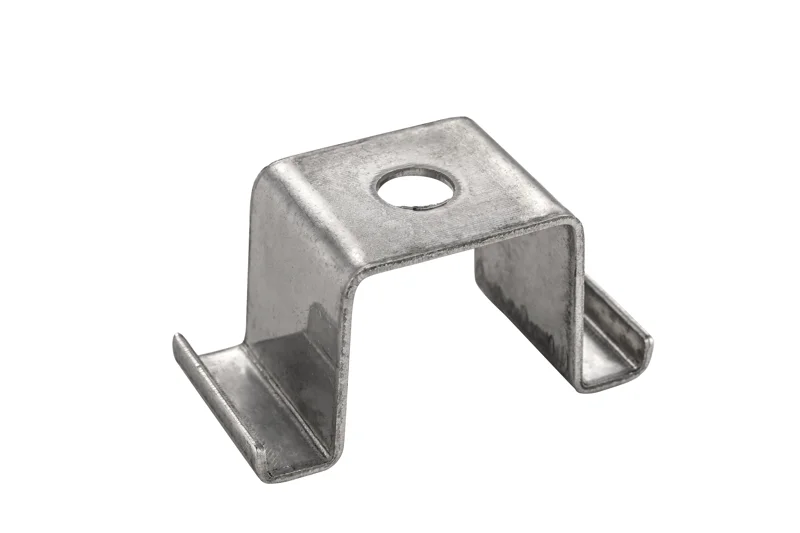

Stainless steel upper clip	38 x 38


Stainless steel step supports	For mesh
For polyester grating	38 x 38
For polyester grating	19 x 19
Grating clamp on step support
Stainless steel hexagonal nut for support


ACCESSORY
Resin kit: 1 dose of resin + 1 dose of hardener

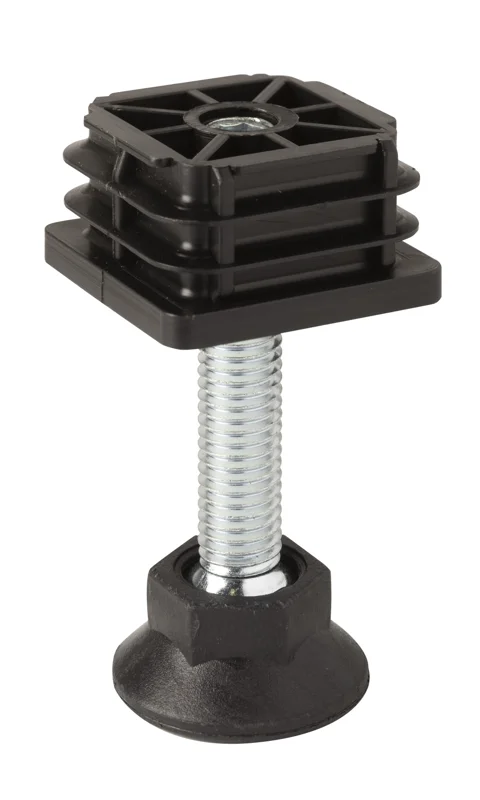

Adjustable feet	Insert thickness (mm)	Insert dimensions (mm)	Foot height (mm)
For polyester grating (mesh 38 x 38 and 19 x 19) and steel (mesh 30 x 30)	20	35 x 35	40 or 70

Accessories

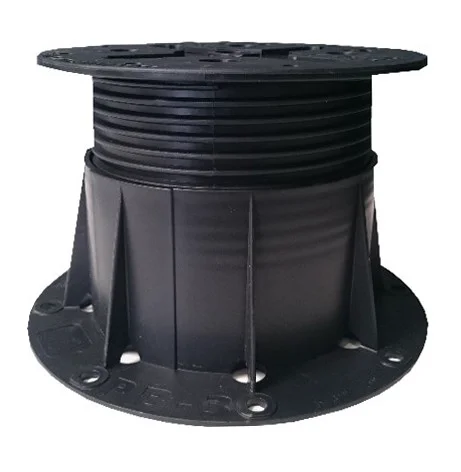

Adjustable pedestals	Height adjustment (mm)
For grating	90 à 145 :o

Available within 10 to 15 days


Screws	Ø (mm)	Length (mm)
Galvanized self-drilling screw TH	6,3	50
	6,3	60
	6,3	70
Stainless steel 304 self-drilling screw TH	6,3	50
Stainless steel 304 self-drilling screw TH	6,3	60
