Press-welded gratings T3B

T3B gratings are press-welded gratings (30x100 mesh, 40x3 bearer bars) specifically designed for motorways and meet the GC77 specifications of the French Ministry of Equipment and Transport.

Custom manufacture

JK Technic offers custom-made T3B gratings to suit your requirements (layout plan, size, etc.). This grating has 30x100 mesh and 40/3 bearing bars.

Our design office is on hand to deal with your technical requirements and layout plans, and will be able to advise you right through to the completion of your orders.

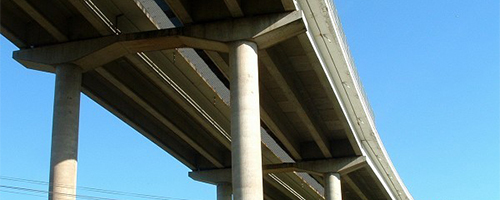

T3B grating is specially designed for motorways and complies with Ministry of Public Works GC77 specifications. T3A gratings are also available for motorway use.

Depending on your needs and expectations, we also offer press-locked, FRP, rubber, full gratings, louvred and special gratings.

Characteristics

Mesh

The mesh spacing is defined in accordance with the standards and loads that must be respected:

  • Standard meshes: 30x30, 30x44, etc...
  • Standard security meshes: 19x19, 19x40, 30x19, etc...
  • EDF mesh: 30x27.
  • Other options are available on request.

Bearer bar

  • Standard height: 25-60 mm.
  • Standard thickness: 2-5 mm.
  • Other options are available on request.

Cross bar

  • Twisted square: 4-6 mm.
  • Smooth rounded configuration available on request.

Dimensions

  • Maximum length of bearer bars: 6100 mm..
  • Maximum length of twisted squares:   1000 mm, or greater on request.

Material

  • S235JR steel as per EN 10025 standards.
  • This product may be ordered in stainless steel depending on the quantities required.
  • Other options are available on request.

Surface treatment

  • Galvanised in accordance with EN ISO 1461 standards.
  • Lacquered in accordance with standard RAL.
  • Bituminous paint.
  • Other options are available on request.

Finish

  • The bearer bar may be notched on request.

Finished product

  • Custom manufacture based on the dimensions given by the customer or on plans drawn up by our research department.
  • Plain or galvanised ½ laps, panels and staircase steps can be easily assembled on site.

Assembly

Press-welded grating is obtained by electrical welded transverse bars, which are usually square and twisted (but can be round and straight) into the bearing bars. The grating is produced with “flat” banding, and then optionally undergoes hot-dip galvanizing in accordance with the applicable EN ISO 1461 standards. For an optimised anti-slip surface, it is possible to produce serrated press-welded grating, with serration on the bearing bars only. It is typically manufactured from EN 10025 standard S235JR steel which ensures a consistent production quality. RAL-GZ 638 manufacturing tolerances applied.



Step 1 :

Put in place the transverse bars and the bearing bars for electrowelding

Assemblage caillebotis

Step 2 :

Electrowelding

Assemblage caillebotis
