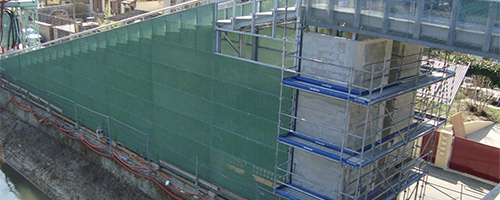

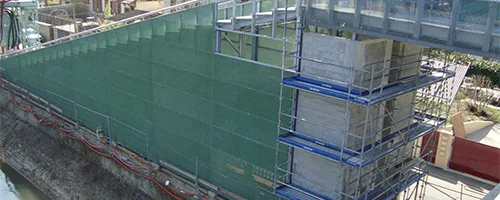

FRP gratings in architectural industry
FRP gratings used in architecture offer numerous benefits:
- Light
- Wide range of colours
- Ease of use: can be cut cleanly and easy to realise.
- Indoor and outdoor use
Whether as a non-skid flooring for grassy areas, as a light well or for a range of other uses, FRP gratings have become the must-have product in recent years.

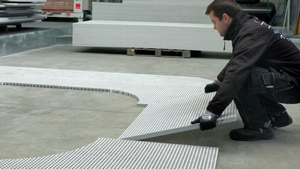

Custom manufacture
JK Technic can manufacture made-to-measure steps to meet your requirements (layout, size, etc.). Profiles for balustrades and ladders with or without hoops can be manufactured on request.
Our research department is available to handle your technical requirements, and can advise you on issues up to and including the realisation of your orders
Characteristics
Mesh centre distances
JK Technic has a range of FRP gratings with different mesh types on offer:
- 38 x 38 - 26 x 26 - 50 x 50 - etc...
- Security bars: 19 x 19.
Bearing bars
- Standard dimensions: 30 / 7; 38 / 7 and 50 / 7 mm.
Standard panel dimensions
- 1000 x 2026 mm.
- 1000 x 3055 mm.
- 1220 x 3055 mm.
Standard dimensions stair treads with gritted front edge
- 800 x 275 mm.
- 1000 x 275 mm.
- 1000 x 350 mm.
Finishes
- Concave.
- Grit.
- Entirely grit-covered surface.
Finished products
- We stock mats, stair treads and stair rails which are easy to assemble on site.
- Custom manufacture possible based on the dimensions and/or plans supplied by the customer.
Manufacture
Moulded FRP grating is manufactured from fibreglass-reinforced resin. It is composed of 65% resin for its chemical and UV resistance and is composed of 35% fibreglass for increased mechanical strength. JK Technic has 3 types of resin on offer with different degrees of resistance to chemical corrosion.
IN STOCK
Isophthalic resin : Fire-resistant and corrosion and chemical-resistant
RAL 7035
Grey
RAL 1001
Beige
RAL 7012
Anthracite
RAL 6010
Green
Vinylester resin with extremely high chemical resistance (high concentrations).
RAL 2002
Orange
Orthophthalic resin with resistance to a wide range of chemicals.
Accessories
JK technic also offers a range of accessories and special fastening systems for FRP gratings :
316 stainless steel clamp with 19 x 19 mesh washer. In stock.
316 stainless steel clamp with 30 x 30 mesh pin. In stock.
316 stainless steel stair support for 30 x 30 and 19 x 19 mesh. In stock.
Adjustable foot.
Dimensions of insert: 35 x 35 mm.
Thickness of insert: 20 mm.
Height of foot: 40 or 70 mm.
In stock.
FRP support bracket
Standard length: 3,000 mm.
Dimensions: 30 x 30 x 5 mm
and 50 x 50 x 6.35 mm.
Can be cut to size.
In stock.
