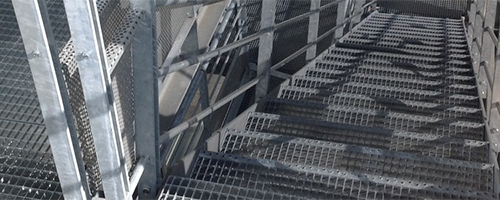

Press-locked gratings for staircase steps

JK Technic press-locked staircase steps are manufactured with a non-skid perforated nose and lateral covers with standard piercing or custom piercing on request. Used both in industrial situations by virtue of their security mesh and their single or double notching and in public locations owing to their visual appeal and finishes, JK Technic staircase steps are suitable for all your projects.

They can be used for straight staircases, balanced steps or even for spiral staircases.

Benefits

Piercing intervals

Depending on the specifications, numerous standard piercing intervals are available and any other piercing is available on request.

Steps
width
in mm

from
150
to
159
from
160
to
169
from
170
to
179
from
180
to
189
from
190
to
199
from
200
to
249
from
250
to
279
from
280
to
309
from
310
to
339
from
340
to
369
Dimensions d
in mm
70 80 90 100 110 120 150 180 210 240





For added safety, JK Technic staircase steps are also available with:

  • Single notching on bearer bars
  • Single notching on insert bars
  • Double notching on insert bars and bearer bars.

Given the crucial importance of safety in our steps, a broad range of floors and steps meeting the NF P98-350 standard for Disabled People has been developed by our research engineers:

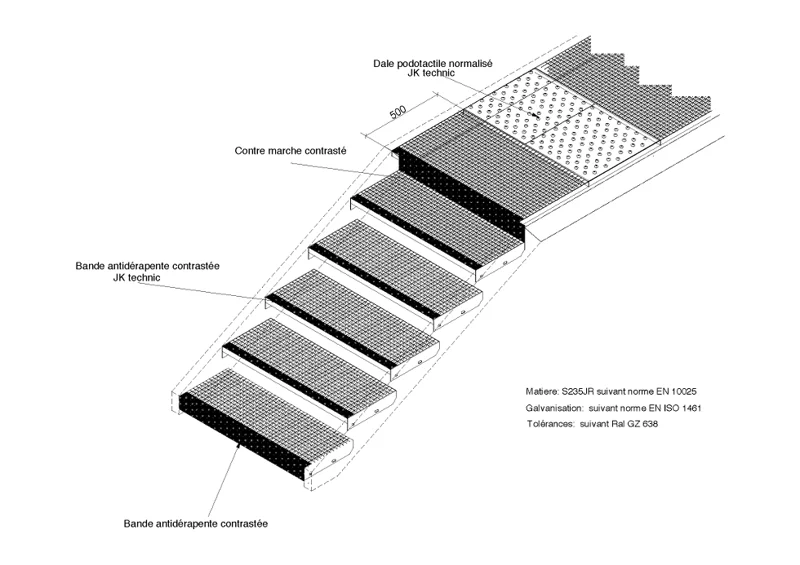

See sketch Disabled People steps

Several finishes available :

  • Untreated steel
  • Power-coated steel
  • Galvanized steel
  • 304 or 316 stainless steel untreated, blasted or electropolished
  • Aluminium untreated or anodised

Custom manufacture

JK Technic can manufacture made-to-measure steps to meet your requirements (layout, size, etc.).

Our research department is available to handle your technical requirements and your intended layouts, and can advise you on issues up to and including the realisation of your orders.

Characteristics

Mesh

  • The mesh spacing is defined in accordance with the standards and loads that must be respected:
  • For a BB thickness of 2-3 mm:
  • The BB spacing is typically a multiple of 11.11.
  • The IB spacing is typically a multiple of 11.11.
  • For a BB thickness of 4-5 mm:
  • The BB spacing is typically a multiple of 18.
  • The IB spacing is typically a multiple of 17.
  • Other options are available on request.

Bearer bar

  • Standard height: 20-150 mm.
  • Standard thickness: 2-8 mm.
  • Other options are available on request.

Transvers bar

  • Spacer: 10 x 2 mm.
  • Other options are available on request.

Dimensions

  • Maximum length of bearer bars: 4000 mm.
  • Maximum length of spacers: 2000 mm.

Material

  • S235JR steel as per EN 10025 standards..
  • Stainless steel 304 ( 1.4301 ).
  • Stainless steel 316 ( 1.4571 ).
  • Aluminium AlMg3.
  • Other options are available on request.

Surface treatment

  • Galvanized in accordance with EN ISO 1461 standards.
  • Lacquered in accordance with standard RAL.
  • Passivation.
  • Anodisation.
  • Bituminous paint
  • Other options are available on request.

Finish

  • Available with 'T' or 'flat' edge.
  • Available with single or double notching on request.
  • HALF-MOON or SAWTOOTH notching available.

Finished product

  • Custom manufacture based on the dimensions given by the customer or on plans drawn up by our research department.
  • Plain or galvanised ½ laps, panels and staircase steps can be easily assembled on site.

Assembly

JK Technic press-locked grating is characterized by transverse, cross bars inserted under high pressure into pre-existing notches in the bearing bars. This grating is produced in “flat” or “T”-shaped sections, welded into place and then optionally undergoes hot-dip galvanizing in accordance with the applicable EN ISO 1461 standards. For situations with an increased risk of slipping, anti-slip grating can be produced, where the upper surface of the bearing bars and/or the transverse bars can be given anti-slip serrations. JK Technic press-locked grating is typically manufactured from EN 10025 standard S235JR steel, which ensures a consistent production quality. RAL-GZ 638 manufacturing tolerances applied.



Step 1 :

BBs and TBs fixed in place

Assemblage caillebotis

Step 2 :

Press-locking

Assemblage caillebotis

Step 3 :

Application of banding bars

Assemblage caillebotis
