Stock program

All of our gratings products in stock



JK Technic has a permanent stock of 200,000 m² of grating and other related products, spread over a storage area of 30,000 m².

The optimised design of our platform ensures that transport flows smoothly and that goods can be collected quickly.



Rubber Grating

Height (mm) Dimensions (mm)
JK GUM
TOP
22 500 x 1000
800 x 1200
1000 x 1500
Height (mm) Dimensions (mm)
JK GUM
OCTA
22 1000 x 1500
Height (mm) Dimensions (mm)
JK GUM
ACCESS
10 Roll 1000 x 10000
1200 x 1830
22 1000 x 1484
Height (mm) Dimensions (mm)
JK GUM
HONEY ANTI-FATIGUE
14 910 x 1510
Height (mm) Dimensions (mm)
JK GUM
HONEY ANTI-FATIGUE Nitrile
14 910 x 1510
Height (mm) Dimensions (mm)
JK GUM
SLIC ANTI-FATIGUE
14 910 x 910
Height (mm) Dimensions (mm)
JK GUM
BUB ANTI-FATIGUE
14 900 x 1200
14 915 x 1525
Height (mm) Dimensions (mm)
JK GUM
SPORTS
16 910 x 910
28 910 x 910
Height (mm) Dimensions (mm)
JK GUM
BARN (version 1)
17 1220 x 1830
Height (mm) Dimensions (mm)
JK GUM
BARN (version 2)
25 1140 x 1830
Height (mm) Dimensions (mm)
JK GUM
CLEAN (version 1)
28 (border) 400 x 800
Height (mm) Dimensions (mm)
JK GUM
CLEAN (version 2)
28 (border) 400 x 800

Profile Grating

Profile grating
PS-CRANT
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steelStainless steelAluminium
402012050 / 2•
18050 / 2•
24050 / 2•••
24050 / 2,5   •
30050 / 2•••
30050 / 2,5   •
36050 / 2•
48050 / 2•

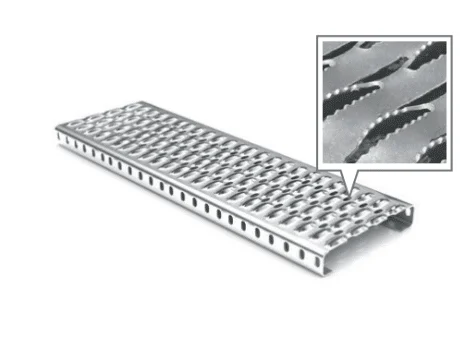

profile grating with indent for stock programme ps crant

Profile grating
PS-PERF
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steelStainless steelAluminium
402020050 / 2••
25050 / 2•••
25050 / 2,5   •
30050 / 2•••
30050 / 2,5   •





profile grating with indent for stock programme ps perf

Profile grating
PS-OFF
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
402030050 / 2•

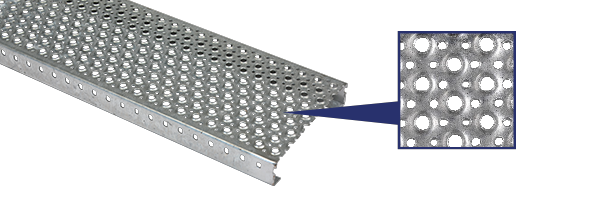

profile grating with indent for stock programme ps off

Profile grating
PS-OVA
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
402020050 / 2•
25050 / 2•
30050 / 2•

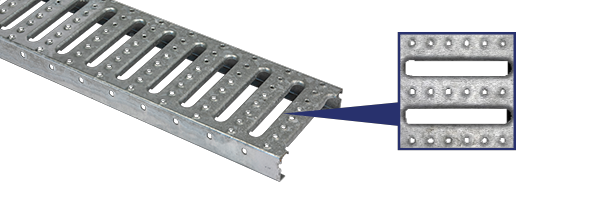

profile grating with indent for stock programme ps ova

Profile grating
PS-FERM
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
402025050 / 2•
30050 / 2•

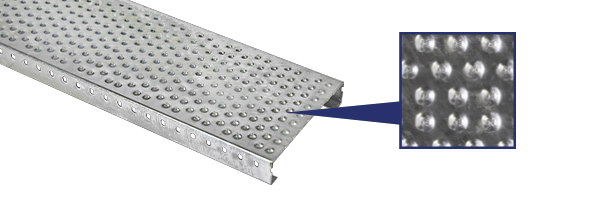

profile grating with indent for stock programme ps ferm

Profile grating
PS-PMR
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
399620050 / 2••
25050 / 2••
30050 / 2••
30075 / 2•

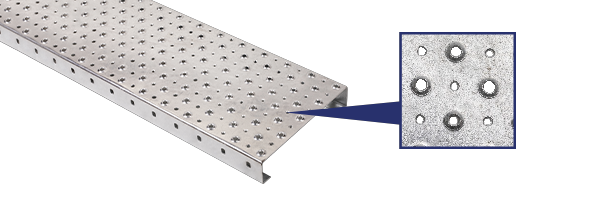

profile grating ps pmr

Profile grating
PS-PMR with galvanized anti-slip nose
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
399633050 / 2•
420033075 / 2•

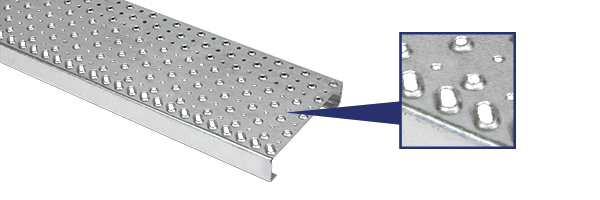

profile grating step ps pmr with galvanized nose

Profile grating
PS-PERFO
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
402030050 / 2•

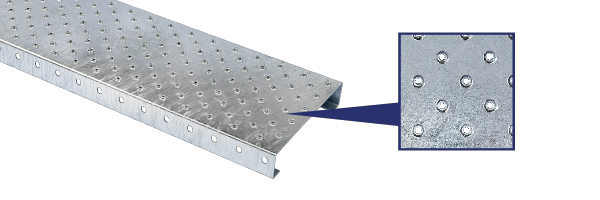

profile grating for stock programme ps perfo



Profile grating steps

Profile grating steps
PS-CRANT
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
80030050 / 2•
100030050 / 2•
120030050 / 2•

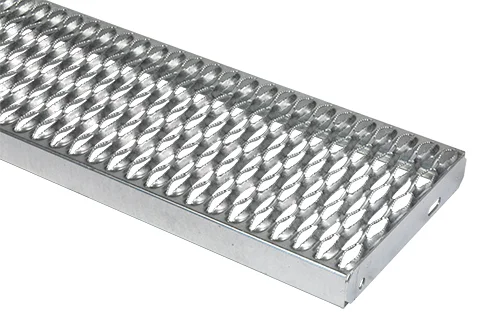

profile grating step ps crant



Profile grating steps
PS-PERF
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
80030050 / 2•
100030050 / 2•
120030050 / 2•

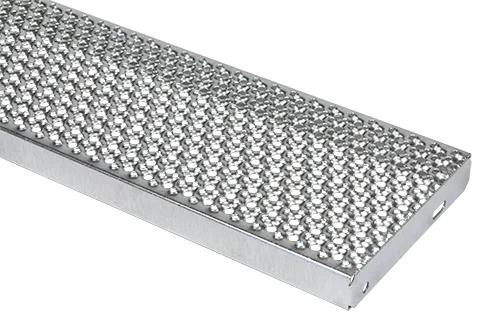

profile grating step ps perf



Profile grating steps
PS-PMR
Length (mm)Width (mm)Height/thickness (mm)GalvanizedBlack steel
80033050 / 2•
90033050 / 2•
100030050 / 2•
33050 / 2•
120033050 / 2,5•
140033075 / 2•
1800330100 / 2•

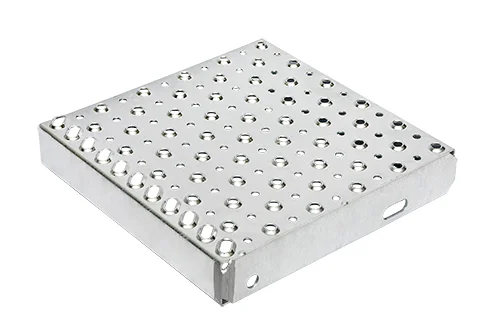

profile grating step ps pmr with galvanized nose





KIT – PS-PMR SUPPORTS

Kit for PS-PMR profile grating
Width 330 mm


2 brackets: left and right.
Fixing kit: 4 screws M6 ISO 7380 + 4 fan washers + 4 nuts ISO 4032

Profile grating
PS-PMR
Length (mm)Width (mm)Height/thickness (mm)Recommended maximum step length
399633050 / 21100 mm
420033075 / 21600 mm



Rungs

Rungs
with 1 row of perforations
Length (mm)Width (mm)GalvanizedBlack steelStainless steel
200025 ••
Rungs
with 2 rows of perforations
Length (mm)Width (mm)GalvanizedBlack steel
200050 •

Fixing Clamps and Accessories

Clamps for steel grating

For mesh


Steel fixing

Galvanized standard clamp with upper clip

19 x 19

galvanized standard clamp with upper clip

30 x 10

30 x 19

30 x 30

40 x 19

Galvanized standard clamp with washer

30 x 30

galvanized standard clamp with washer for mesh 30x30

Universal galvanized clamp

30 x 30 minimum

universal galvanized clamp

Galvanized double clamp with upper clip

19 x 19

galvanized double clamp with upper clip

30 x 30

Galvanized upper clip

19 x 19

galvanized upper clip

30 x 10

30 x 19

30 x 30

40 x 19

40 x 40

Universal galvanized hook

30 x 30 minimum



Stainless steel standard clamp with upper clip

19 x 19

complete stainless steel clamp with upper clip for mesh 30x30

30 x 30

Stainless steel upper clip

19 x 19

stainless steel upper clip

30 x 30

Adjustable feet

Insert thickness (mm)

Insert dimensions (mm)

Foot height (mm)




For steel grating (mesh 19 x 19)

20

25 x 25

40 or 70

Support foot for 19x19 steel grating

Fixing clamps for profile grating



Type S clip without olive for PS OFF - PS PERF profile grating

Type S clip without olive for PS PMR profile grating

Polyester olive for PS-CRANT profile grating

Clamps for polyester grating

For mesh


Polyester fixing

Complete galvanized clamp with upper clip

38 x 38

complete galvanized clamp with upper clip for polyester 30x30

19 x 19

Complete stainless steel clamp with upper clip

38 x 38



Complete stainless steel clamp with washer

19 x 19

complete stainless steel clamp with washer for polyester 19x19

Stainless steel upper clip

38 x 38

stainless steel upper clip for polyester

Stainless steel step supports

For mesh




For polyester grating

38 x 38

stainless steel step support stock programme

19 x 19

Grating clamp on step support



Stainless steel hexagonal nut for support



ACCESSORY



Resin kit: 1 dose of resin + 1 dose of hardener

Adjustable feet

Insert thickness (mm)

Insert dimensions (mm)

Foot height (mm)




For polyester grating (mesh 38 x 38 and 19 x 19) and steel (mesh 30 x 30)

20

35 x 35

40 or 70

foot for polyester and steel grating 30x30

Adjustable pedestals

Height adjustment (mm)


Accessories

For grating

90 à 145



adjustable pedestal stock programme





blue dot pictogram Available within 10 to 15 days





Screws

Ø (mm)

Length (mm)



Galvanized self-drilling screw TH

6,3

50

6,3

60

6,3

70

Stainless steel 304 self-drilling screw TH

6,3

50

6,3

60

Shelving / Racking





4 dimensions* of galvanized press locked grating in stock according to load, with a safety factor of 1.5 and an APSAD-compliant (French insurance code) air/water open area of 90% minimum
Grade S235JR in accordance with standard EN 10025
Galvanization in accordance with standard EN ISO 1461
Manufacturing tolerances in accordance with RAL GZ 638





Length in mmLight load
"JK RAYO LÉGER"		Medium load
"JK RAYO MI-LOURD"		Medium load
"JK RAYO MI-LOURD+"		Heavy load
"JK RAYO LOURD"
Dimension*995 x 890995 x 890995 x 890995 x 890
Mesh100 x 60100 x 6090 x 6060 x 100
T.H.25 x 235 x 240 x 240 x 2
Air/water open area95%95%94.8%95%
Allowable load265 daN/m² i.e. 236 daN/panel525 daN/m² i.e. 467 daN/panel840 daN/m² i.e. 747 daN/panel1070 daN/m² i.e. 952 daN/panel





* The first dimension listed is in the load-bearing direction

Galvanized Press Locked Grating Panels

Bordered panels
Mesh 30 x 30
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 2200 x 1000
250 x 1000
300 x 500
300 x 1000
400 x 500
400 x 1000
500 x 500
500 x 1000
600 x 500
600 x 1000
700 x 1000
800 x 500
800 x 1000
900 x 1000
1000 x 500
1000 x 600
1000 x 700


1000 x 800
1000 x 900


1000 x 1000
1000 x 1250
1000 x 2000
1100 x 1000
1200 x 500
1200 x 600
1200 x 1000
1250 x 1000
1300 x 1000
2000 x 1000*
30 / 31000 x 1000
1000 x 1500


1200 x 1000


1400 x 1000
1500 x 500
1500 x 1000

*requires an intermediate support for pedestrian load transfer.

Bordered panels
Mesh 30 x 30 — single half-moon serration
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 2600 x 1000
800 x 1000
1000 x 1000





Bordered panels
Mesh 50 x 100
T.H.Dimensions in mm1Heavy load
90 / 8950 x 1000



Bordered panels
Mesh 30 x 10
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 2600 x 1000
700 x 1000
800 x 1000
900 x 1000
1000 x 600
1000 x 700
1000 x 800
1000 x 900
1000 x 1000
1200 x 1000
30 / 31500 x 1000
Bordered panels
Mesh 30 x 19
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 2800 x 1000
1000 x 1000
1200 x 1000
30 / 31500 x 1000
Bordered panels
Mesh 19 x 19
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 2500 x 1000
800 x 1000
1000 x 1000
1200 x 1000
30 / 31500 x 1000
Bordered panels
Mesh 19 x 30 — double saw-tooth serration
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 31000 x 1000
1500 x 1000
Bordered panels
Mesh 30 x 30 — double half-moon serration
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 2500 x 1000


600 x 1000


700 x 1000


800 x 1000
900 x 1000


1000 x 1000
1200 x 1000
30 / 31000 x 1000
1200 x 1000


1500 x 1000




Available within 10 to 15 days

Black Steel and Galvanized Press Locked Grating Large Panels

Unbordered large panels
Black steel
MeshT.H.Dimensions in mm1
30 x 3030 / 23000 x 994
30 / 33000 x 994
30 x 1930 / 23000 x 994
30 x 1030 / 23000 x 994
19 x 1930 / 23000 x 994
40 / 23000 x 994
Unbordered large panels
Galvanized
MeshT.H.Dimensions in mm1
30 x 3030 / 23000 x 994
30 / 33000 x 994
30 x 1030 / 33000 x 994
19 x 1930 / 23000 x 994
Unbordered large panels
Black steel — single half-moon serration
MeshT.H.Dimensions in mm1
30 x 1030 / 23000 x 994
30 / 33000 x 994
Unbordered large panels
Black steel — double half-moon serration
MeshT.H.Dimensions in mm1
30 x 3030 / 23000 x 994
30 / 3

3000 x 994
19 x 3030 / 23000 x 994


Available within 10 to 15 days



Galvanized Press Locked Grating Steps

Press locked grating steps
Mesh 30 x 30
T.H.Dimensions in mm1Pitch
25 / 2500 x 200

120
500 x 240

120
600 x 200

120
30 / 2600 x 230120
600 x 240120
600 x 260150
600 x 270150
600 x 305180
600 x 330210
700 x 200

120
700 x 230120
700 x 240120
700 x 260150
700 x 270150
700 x 305180
800 x 200

120
800 x 230120
800 x 240120
800 x 260150
800 x 270150
800 x 305180
800 x 330210
900 x 230120
900 x 240120
900 x 260150
900 x 270150
900 x 305180
900 x 330210
1000 x 230120
1000 x 240120
1000 x 260150
1000 x 270150
1000 x 305180
30 / 3800 x 270

150
1000 x 270150
1000 x 305180
1200 x 270150
1200 x 305180
35 / 2900 x 200

120
900 x 270150
1000 x 200

120
1000 x 240

120
1000 x 270150
1000 x 305180
40 / 21000 x 330210
1200 x 200

120
1200 x 240

120
1200 x 330210
1400 x 330210
40 / 31200 x 270150
1200 x 305180
Press locked grating steps
Mesh 30 x 30 — simple serration
T.H.Dimensions in mm1Pitch
35 / 31000 x 305180
40 / 31200 x 305180
Press locked grating steps
Mesh 30 x 30 — double half-moon serration
T.H.Dimensions in mm1Pitch
30 / 2600 x 240

120
600 x 270

150
800 x 270150
30 / 31000 x 270150
35 / 2700 x 240

120
700 x 270

150
800 x 240

120
40 / 2900 x 240

120
900 x 270

150
1000 x 240

120
1000 x 270

150
1200 x 240

120
1200 x 270

150
40 / 31200 x 305180
Press locked grating steps
Mesh 30 x 19
T.H.Dimensions in mm1Pitch
30 / 2800 x 270150
800 x 330210
900 x 330210
1000 x 330210
40 / 2900 x 330210
1200 x 330210
40 / 31400 x 330210
Press locked grating steps
Mesh 19 x 19
T.H.Dimensions in mm1Pitch
30 / 2600 x 330210
700 x 330210
800 x 330210
900 x 330210
1000 x 330210
1000 x 350240
35 / 21200 x 330210
40 / 21000 x 330210
1200 x 350240
50 / 21400 x 330210
Press locked grating steps
Mesh 30 x 10
T.H.Dimensions in mm1Pitch
25 / 2600 x 240

120
600 x 270

150
30 / 2600 x 270150
700 x 240

120
700 x 270150
800 x 240

120
800 x 270150
30 / 31000 x 305180
35 / 2900 x 240

120
900 x 270150
1000 x 240120
1000 x 270150
1000 x 305180
40 / 21200 x 240

120
1200 x 270

150
40 / 31200 x 270150
1200 x 305180
Press locked grating steps
Mesh 30 x 10 — single half-moon serration
T.H.Dimensions in mm1Pitch
30 / 2800 x 240120
30 / 31000 x 270150
1000 x 305180
35 / 21000 x 270150
40 / 31200 x 305180
1250 x 305180
Press locked grating steps
Mesh 19 x 30 — double saw-tooth serration
T.H.Dimensions in mm1Pitch
30 / 3800 x 300180
Anti-slip nose
FinishDimensions in mm
Black steel3 000
6 000
Press locked grating steps
Mesh 30 x 30 — simple serration + 70 mm nose
T.H.Dimensions in mm1Pitch
30 / 2800 x 270150
35 / 2900 x 270150
1000 x 305180
40 / 31200 x 305180

Available within 10 to 15 days

(1) The first dimension listed is in the load-bearing direction

Aluminium Press Locked Grating Panels

T.H. Dimensions in mm1 Pedestrian traffic Light vehicle
Bordered panels
Mesh 30 x 30
40 / 2 1000 x 1000
T.H. Dimensions in mm1 Pedestrian traffic Light vehicle
Bordered panels
Mesh 30 x 19
40 / 2 1000 x 1000
T.H. Dimensions in mm1 Pedestrian traffic Light vehicle
Bordered panels
Mesh 19 x 19
40 / 2 1000 x 1000

(1) The first dimension listed is in the load-bearing direction

Stainless Steel Press Locked Grating Large Panels, Panels and Steps

T.H.

Dimensions in mm1

Pedestrian traffic

Light vehicle

Bordered press locked grating panels
SS304 DKP mesh 30 x 30

30 / 2

500 x 1000





800 x 1000





1000 x 1000





T.H.

Dimensions in mm1

Pedestrian traffic

Light vehicle

Bordered press locked grating panels
SS304 DKP mesh 30 x 19

30 / 2

1000 x 1000





T.H.

Dimensions in mm1

Pedestrian traffic

Light vehicle

Bordered press locked grating panels
SS304 DKP mesh 19 x 19

30 / 2

1000 x 1000





Mesh

T.H.

Dimensions in mm1

Unbordered press locked grating large panels
SS304 black steel

30 x 30

30 / 2

3000 x 994

30 x 19

30 / 2

3000 x 994

T.H.

Dimensions in mm1

Pitch

Press locked grating steps
SS304 DKP mesh 30 x 30

30 / 2

800 x 300

180

1000 x 300

180



drilling pitch diagram for grating step — stock programme

(1) The first dimension listed is in the load-bearing direction



Press Welded Grating Panels and Steps

Bordered press welded grating panels
Mesh 30 x 30
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 2500 x 1000
600 x 1000
700 x 1000
800 x 1000
900 x 1000
1000 x 1000
1200 x 1000
2000 x 1000
30 / 31500 x 1000
Bordered press welded grating panels
Mesh 30 x 19
T.H.Dimensions in mm1Pedestrian trafficLight vehicle
30 / 22000 x 1000
Press welded grating steps
Mesh 30 x 30
T.H.Dimensions in mm1Pitch
30 / 2600 x 230120
600 x 240120
700 x 230120
700 x 240120
800 x 230120
800 x 240120
800 x 260150
800 x 330210
900 x 230120
900 x 240120
900 x 305180
900 x 330210
1000 x 230120
1000 x 240120
1000 x 260150
30 / 31000 x 270150
1000 x 305180
40 / 31200 x 270150
1200 x 305180
Press welded grating steps
Mesh 30 x 19
T.H.Dimensions in mm1Pitch
30 / 2600 x 260150
700 x 230120
800 x 230120
800 x 240120
800 x 260150
800 x 270150
900 x 230120
900 x 330210
1000 x 230120
1000 x 240120
1000 x 260150

Press Welded Grating Large Panels and Half Panels

Mesh 30 x 30
T.H.Dimensions in mm1GalvanizedBlack steel
25 / 23050 x 1000 •
6100 x 1000••
30 / 23050 x 1000••
6100 x 1000••
30 / 33050 x 1000•
6100 x 1000••
40 / 26100 x 1000•
40 / 36100 x 1000••
Mesh 19 x 40
T.H.Dimensions in mm1GalvanizedBlack steel
25 / 23050 x 1000 •
30 / 26100 x 1000••
30 / 33050 x 1000•
6100 x 1000••
Mesh 19 x 19
T.H.Dimensions in mm1GalvanizedBlack steel
30 / 23050 x 1000••
6100 x 1000••
Mesh 30 x 40
T.H.Dimensions in mm1GalvanizedBlack steel
30 / 33050 x 1000•
6100 x 1000•
Mesh 30 x 19
T.H.Dimensions in mm1GalvanizedBlack steel
30 / 23050 x 1000••
6100 x 1000••
30 / 36100 x 1000••

Galvanized Press Welded Grating Large Panels

Galvanized press welded grating large panels
Half-moon serration
MeshT.H.Dimensions in mm1
30 x 10025 / 56100 x 1000
30 x 10030 / 56100 x 1000

(1) The first dimension listed is in the load-bearing direction

Polyester Grating

Polyester panels – isophthalic resin
Grey RAL 7035

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

20

19 x 19

1000 x 2026

•



19 x 19

1000 x 3055

•



19 x 19

1220 x 3055

•



25

19 x 19

198 x 2026

•



19 x 19

198 x 3055

•



19 x 19

312 x 2026

•



19 x 19

312 x 3055

•



19 x 19

1000 x 2026

•



19 x 19

1000 x 3055

•



19 x 19

1220 x 3055

•



30

19 x 19

1000 x 2026

•

•

19 x 19

1000 x 3055

•

•

19 x 19

1220 x 3055

•

•

38

19 x 19

1000 x 2026

•



19 x 19

1220 x 3055

•



30

38 x 38

1000 x 2026

•

•

38 x 38

1000 x 3055

•

•

38 x 38

1220 x 3055

•

•

38

38 x 38

1000 x 2026

•



38 x 38

1000 x 3055

•



30

26 x 26

1000 x 3075

•



50

50 x 50

1220 x 3055



•

Polyester panels – isophthalic resin
Green RAL 6010

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

30

19 x 19

1000 x 2026

•

•

19 x 19

1000 x 3055

•

•

19 x 19

1220 x 3055

•

•

38

19 x 19

1000 x 3055

•



30

38 x 38

1000 x 2026

•

•

38 x 38

1000 x 3055

•

•

38 x 38

1220 x 3055

•

•

38

38 x 38

1000 x 2026

•

•

38 x 38

1000 x 3055

•



38 x 38

1220 x 3055

•



30

26 x 26

1000 x 3075

•


Polyester panels – isophthalic resin
Beige RAL 1001

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

20

19 x 19

1000 x 2026

•



19 x 19

1000 x 3055

•



25

19 x 19

1000 x 2026

•



19 x 19

1000 x 3055

•



19 x 19

1220 x 3055

•



30

19 x 19

1000 x 2026

•



19 x 19

1000 x 3055

•


Polyester panels – isophthalic resin
Anthracite RAL 7012

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

25

19 x 19

1000 x 2026

•



19 x 19

1000 x 3055

•



19 x 19

1220 x 3055

•


Polyester panels – vinyl ester resin
Orange RAL 2002

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

30

19 x 19

1000 x 2026

•



38 x 38

1000 x 2026

•


Polyester grating with gritted full surface

Colour

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

Grey RAL 7035

30 + 3

38 x 38

1000 x 3055

•



Green RAL 6010

30 + 3

38 x 38

1000 x 3055

•









Polyester steps

Polyester steps with gritted nose
Grey RAL 7035

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

38

38 x 38

800 x 275



•

38 x 38

1000 x 275



•

38 x 38

1000 x 350



•

19 x 19

800 x 275



•

19 x 19

1000 x 275



•

19 x 19

1000 x 350



•

Polyester steps with gritted nose
Green RAL 6010

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

38

38 x 38

800 x 275



•

38 x 38

1000 x 275



•

38 x 38

1000 x 350



•

19 x 19

800 x 275



•

19 x 19

1000 x 275



•

19 x 19

1000 x 350



•





Outdoor stairs in PS-CRANT and PS-PMR safety grating







Polyester grating with integrated angle

Polyester grating with integrated angle
Grey RAL 7035

Height (mm)

Mesh

Dimensions (mm)

Gritted

Concave

25

19 x 19

203 x 2026

•



19 x 19

203 x 3055

•



19 x 19

261 x 2026

•



19 x 19

261 x 3055

•



19 x 19

317 x 2026

•



19 x 19

317 x 3055

•


Moulded polyester grating panel with dimensions







Polyester profiles



Dimensions (mm)*

Length (mm)

Grey RAL 7035

Anthracite RAL 7012

Beige RAL 1001

Yellow RAL 1003

Green RAL 6010

H profile

100 x 100 x 6

6000

•



200 x 200 x 12

6000

•



I profile

100 x 50 x 8

6000

•



150 x 75 x 9,5

6000

•



150 x 100 x 8

3000

•



200 x 200 x 9,5

6000

•



U profiles

100 x 50 x 6,5

6000

•



150 x 50 x 6,5

6000

•



200 x 60 x 10

6000

•



Angles

30 x 30 x 5

3000

•



•



50 x 50 x 6

3000

•



75 x 75 x 9

6000

•







100 x 100 x 9,5

6000

•



Bevelled angles

25 x 50 x 5

3000

•

•

•



Gritted angles

30 x 30 x 3

3000

•



•

•

Square tube

50 x 50 x 5

6000

•



100 x 100 x 6,5

6000

•



* For exact dimensions, please contact us.







Polyester guardrail

Guardrail components
Grey RAL 7035


Dimensions (mm)

Length (mm)

Handrail

l 58 x h 62

6000

Intermediate rail

Ø int. 22 - Ø ext. 32

6000

Kickplate

l 100

6000

Square post

l 50 x h 50 - épais. 7,5

6000

Floor base

L 153 x l 126 x h 133



Wall bracket

L 170 x l 60 x h 120



90° elbow connector for handrail

L 150 x 150 x l 49 x h 40



90° elbow connector for intermediate rail

L 105 x 105 x Ø int. 21,7 - Ø ext. 30



Articulated connector for handrail

L 50 x l 50 x h 143



Connector for kickplate

L 100 x l 50 x h 50 x épais. 6



Cap for handrail

L 6 x l 60 x h 63



Cap for intermediate rail

L 14 x Ø int. 22 - Ø ext. 35





Parc industriel Sud
ZI Edison Rue Abbé Louis Verdet
57200 SARREGUEMINES
Tél. : +33 3 87 98 88 76 Fax : +33 3 87 98 82 87 Mail : jktechnic@jktechnic.fr



11:19:56 am GMT+1
Sarreguemines

Gratings

The Company

Company

Services

Contact

Gratings

Blog

Customer area

Follow us

Receive our news
