Rubber gratings

JK Technic offers you a large range of rubber gratings / mats / tiles to meet all your needs. All our rubber gratings comply with the Reach Standard adopted to protect human health and the environment against the risks related to chemical substances.

Characteristics

GRATINGS / MATS / TILES

  • Composition: Natural and recycled rubber.
  • Colour: black.
  • Finish: Depending on the model.
  • Height: Depending on the model.
  • Dimensions: Depending on the model.
  • Ecology: Biodegradable and recyclable.

MAIN ADVANTAGES

  • Strong.
  • Non-slip.
  • Anti-fatigue.
  • Resistant to water and to U.V.
  • Biodegradable and recyclable.

Areas of application

JK Technic rubber gratings can be used in a number of different areas, such as building entrances, walkways, staircases, access roads, production lines, ski resorts, etc.

Equestrian center

Amusement park

Winter sport resort

Golf course

Accessories

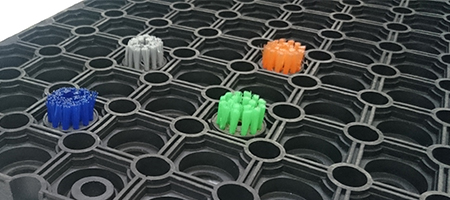

Brushes

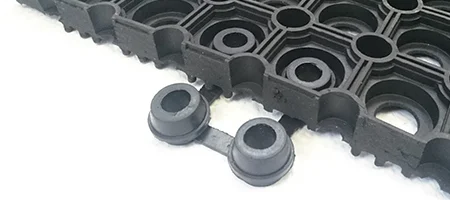

Junction

Technical infos

Structures



Portée du caillebotis

MESH

Spacing between bearing bars (BB) and transverse bars (TB). Mesh created in this way has two characteristics: mesh width and mesh centre spacing (pitch).

  • Mesh width: the width of the opening that is between the BBs and TBs
  • Mesh centre spacing (pitch): the distance between the centre of BBs and TBs (for example, the distance between the centre of one bearing bar and the centre of the nearest adjacent bearing bar)

Portée du caillebotis

MESCH GROUP/TYPE

 Mesh is made up of two values (in mm), where the first dimension is the distance between adjacent bearing bars, and the second dimension being the distance between adjacent transverse bars (for example: 33.33 x 33.33; 33.33 x 11.11; 55.55 x 55.55; etc.).

For convenience’s sake, the term “mesh gauge” is more frequently used (for example: 30 x 30 - 30 x 10 - 50 x 50 - etc.)

Portée du caillebotis

BEARING BARS (BB)

Straight rods bearing the weight and arranged in rows at right angles to the transverse bars and supports.

Portée du caillebotis

TRANSVERS BARS OR CROSS BARS (TB)

Arranged at right angles to the bearing bars, and bonded to the bearing bars by the exertion of high pressure (press-locked grating) or by electrowelding (press-welded grating). The transverse bars are manufactured respectively in “straight metal” or as square, twisted bars.

Portée du caillebotis

BB AND TB GAUGE

 this is defined by two values (in mm), where the first corresponds to their height and the second to their thickness. Gauge examples: 30 / 2; 30 / 3; 40 / 3; etc...

Portée du caillebotis

RANGE

Gap between the supports on which the ends of the bearing bars rest.

Portée du caillebotis

IMPERMEABILITY - SECURITY BARS

security mesh uses the following mesh gauge: 30 x 19; 19 x 30; 19 x 19; etc. It is recommended for industrial environments (14122 standard) and allows nothing exceeding a 20 mm diameter ball to pass through it.

Portée du caillebotis

SUPPORT BRAKET

Bracket welded to the ends of the grating rendering it suitable for certain uses (for example: shelving, guttering).

Material



Portée du caillebotis

STEEL

Portée du caillebotis

STAINLESS STEEL

Portée du caillebotis

ALUMINIUM

Portée du caillebotis

FRP

Portée du caillebotis

RUBBER

Finishes



Portée du caillebotis

"T" BANDING BAR

 Bar which forms the outer frame of the panels.

Portée du caillebotis

"FLAT" BANDING BAR

 Bar which forms the outer frame of the panels.

Portée du caillebotis

TOE PLATE

Straight metal welded onto the end of the grating

Portée du caillebotis

RAISED BORDER

Straight metal welded onto the end of the grating

Serration



Portée du caillebotis

SIMPLE ANTI-SLIP SERRATION ON BB

Various types of serration can be applied to bearing and/or transverse bars. Please note that this double serration option (for BBs as well as TBs) is only applicable to press-locked grating. Serration can only be applied to bearing bars for press-welded grating.

Portée du caillebotis

SIMPLE ANTI-SLIP SERRATION ON TB

Various types of serration can be applied to bearing and/or transverse bars. Please note that this double serration option (for BBs as well as TBs) is only applicable to press-locked grating. Serration can only be applied to bearing bars for press-welded grating.

Portée du caillebotis

DOUBLE ANTI-SLIP SERRATION ON BB AND TB

Various types of serration can be applied to bearing and/or transverse bars. Please note that this double serration option (for BBs as well as TBs) is only applicable to press-locked grating. Serration can only be applied to bearing bars for press-welded grating.



Specific applied standards



ISO 14122 : Permanent means of access to machines and industrial plants

ISO 14122-2 : Working platforms and walkways

ISO 14122-3 : Stairs, ladders and handrails

RAL-GZ 638 : Manufacturing tolerances for gratings

RAL-GZ 639 : Manufacturing tolerances for safety grids

EN ISO 1461 : Galvanisation requirements

P98-350 : Integration of disadvantaged people

EN 10025 : Steel standard
