Press-welded gratings for staircase steps

JK Technic press-welded staircase steps are manufactured with a non-skid perforated nose and lateral covers with standard piercing or custom piercing on request. Used in industrial fields for their security mesh and without single notching (on request), JK Technic's staircase steps are suitable for all your projects.

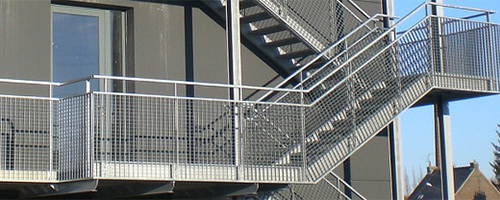

They can be used for straight staircases, balanced steps or even for spiral staircases.

Benefits

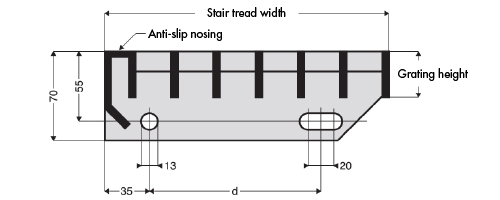

Piercing intervals

Depending on the specifications, numerous standard piercing intervals are available and any other piercing is available on request.

Steps
width
in mm

from
150
to
159
from
160
to
169
from
170
to
179
from
180
to
189
from
190
to
199
from
200
to
249
from
250
to
279
from
280
to
309
from
310
to
339
from
340
to
369
Dimensions d
in mm
70 80 90 100 110 120 150 180 210 240

Several finishes available :

  • Untreated steel
  • Power-coated steel
  • Galvanized steel

Custom manufacture

JK Technic can manufacture made-to-measure steps to meet your requirements (layout, size, etc.).

Our research department is available to handle your technical requirements, and can advise you on issues up to and including the realisation of your orders.

Characteristics

Mesh

The mesh spacing is defined in accordance with the standards and loads that must be respected:

  • Standard meshes: 30x30, 30x44, etc...
  • Standard security meshes: 19x19, 19x40, 30x19, etc...
  • EDF mesh: 30x27.
  • Other options are available on request.

Bearer bar

  • Standard height: 25-60 mm.
  • Standard thickness: 2-5 mm.
  • Other options are available on request.

Cross bar

  • Twisted square: 4-6 mm.
  • Smooth rounded configuration available on request.

Dimensions

  • Maximum length of bearer bars: 6100 mm..
  • Maximum length of twisted squares:   1000 mm, or greater on request.

Material

  • S235JR steel as per EN 10025 standards.
  • This product may be ordered in stainless steel depending on the quantities required.
  • Other options are available on request.

Surface treatment

  • Galvanised in accordance with EN ISO 1461 standards.
  • Lacquered in accordance with standard RAL.
  • Bituminous paint.
  • Other options are available on request.

Finish

  • The bearer bar may be notched on request.

Finished product

  • Custom manufacture based on the dimensions given by the customer or on plans drawn up by our research department.
  • Plain or galvanised ½ laps, panels and staircase steps can be easily assembled on site.

Assembly

Press-welded grating is obtained by electrical welded transverse bars, which are usually square and twisted (but can be round and straight) into the bearing bars. The grating is produced with “flat” banding, and then optionally undergoes hot-dip galvanizing in accordance with the applicable EN ISO 1461 standards. For an optimised anti-slip surface, it is possible to produce serrated press-welded grating, with serration on the bearing bars only. It is typically manufactured from EN 10025 standard S235JR steel which ensures a consistent production quality. RAL-GZ 638 manufacturing tolerances applied.



Step 1 :

Put in place the transverse bars and the bearing bars for electrowelding

Assemblage caillebotis

Step 2 :

Electrowelding

Assemblage caillebotis
