Press-locked gratings for sun shadings

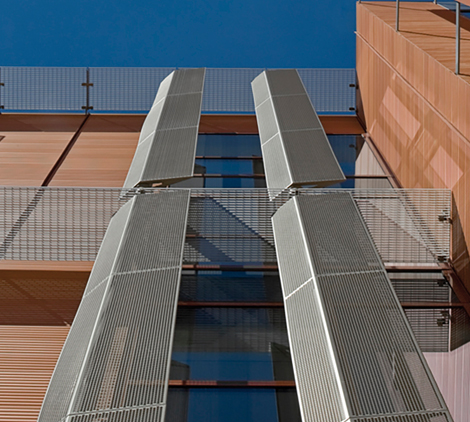

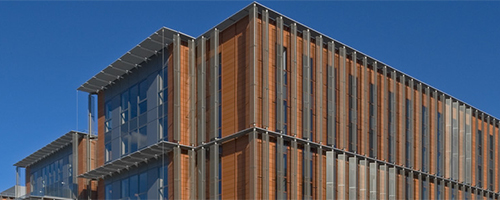

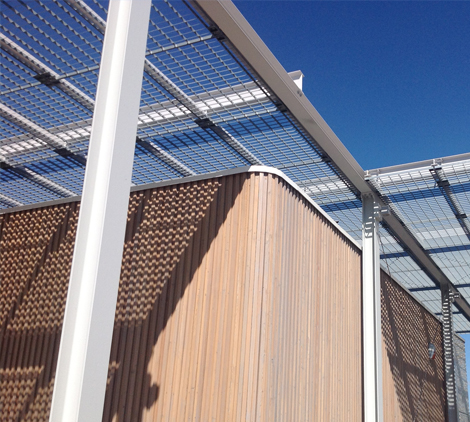

Sun-breaker gratings are an aesthetic element used to define spaces and surfaces, allowing light to illuminate the area naturally whilst creating an interplay of shapes. For added creativity in the visual appearance of a building, you can enhance the façade with press-locked facade boarding with aligned meshes.

Benefits

Moderne architecture

Manufactured mainly from press-locked gratings, sun-breaker boarding is also available as boarding with slanted struts, as half-iron boarding, in stainless steel and in aluminium.

Custom manufacture

JK Technic can manufacture made-to-measure pressed sun-breaker boarding to meet your requirements (layout, size, etc.).

Our research department is available to handle your technical requirements, and can advise you on issues up to and including the realisation of your orders.

Characteristics

Mesh

  • The mesh spacing is defined in accordance with the standards and loads that must be respected:
  • For a BB thickness of 2-3 mm:
  • The BB spacing is typically a multiple of 11.11.
  • The IB spacing is typically a multiple of 11.11.
  • For a BB thickness of 4-5 mm:
  • The BB spacing is typically a multiple of 18.
  • The IB spacing is typically a multiple of 17.
  • Other options are available on request.

Bearer bar

  • Standard height: 20-150 mm.
  • Standard thickness: 2-8 mm.
  • Other options are available on request.

Transvers bar

  • Spacer: 10 x 2 mm.
  • Other options are available on request.

Dimensions

  • Maximum length of bearer bars: 4000 mm.
  • Maximum length of spacers: 2000 mm.

Material

  • S235JR steel as per EN 10025 standards..
  • Stainless steel 304 ( 1.4301 ).
  • Stainless steel 316 ( 1.4571 ).
  • Aluminium AlMg3.
  • Other options are available on request.

Surface treatment

  • Galvanized in accordance with EN ISO 1461 standards.
  • Lacquered in accordance with standard RAL.
  • Passivation.
  • Anodisation.
  • Bituminous paint
  • Other options are available on request.

Finish

  • Available with 'T' or 'flat' edge.
  • Available with single or double notching on request.
  • HALF-MOON or SAWTOOTH notching available.

Finished product

  • Custom manufacture based on the dimensions given by the customer or on plans drawn up by our research department.
  • Plain or galvanised ½ laps, panels and staircase steps can be easily assembled on site.

Assembly

JK Technic press-locked grating is characterized by transverse, cross bars inserted under high pressure into pre-existing notches in the bearing bars. This grating is produced in “flat” or “T”-shaped sections, welded into place and then optionally undergoes hot-dip galvanizing in accordance with the applicable EN ISO 1461 standards. For situations with an increased risk of slipping, anti-slip grating can be produced, where the upper surface of the bearing bars and/or the transverse bars can be given anti-slip serrations. JK Technic press-locked grating is typically manufactured from EN 10025 standard S235JR steel, which ensures a consistent production quality. RAL-GZ 638 manufacturing tolerances applied.



Step 1 :

BBs and TBs fixed in place

Assemblage caillebotis

Step 2 :

Press-locking

Assemblage caillebotis

Step 3 :

Application of banding bars

Assemblage caillebotis
